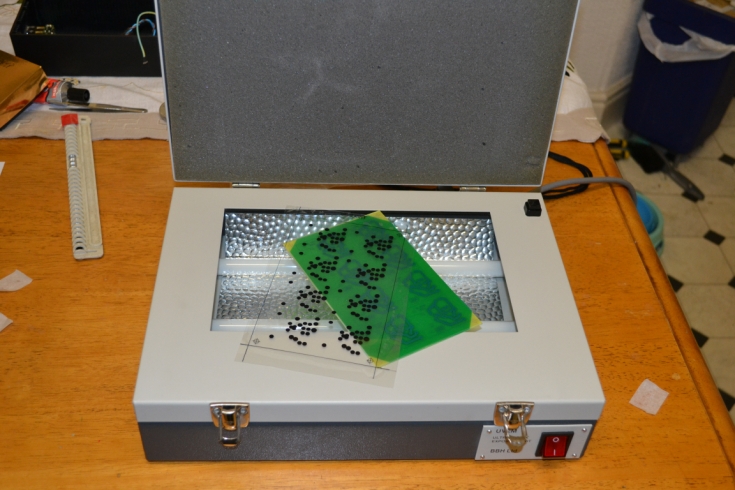

The
board now needs exposing to UV light. Photo positive artwork is
used, the black dots are where you want the holes in the film for the
solder pads. I exposed it for 1 min then removed the protective clear
film (It had one on each side) and let it stand under the lid (in the
dark) to rest for 20 min as part of the process. It's then ready for
developing.
|
|
