I'm waiting on parts for the speaker plinths.

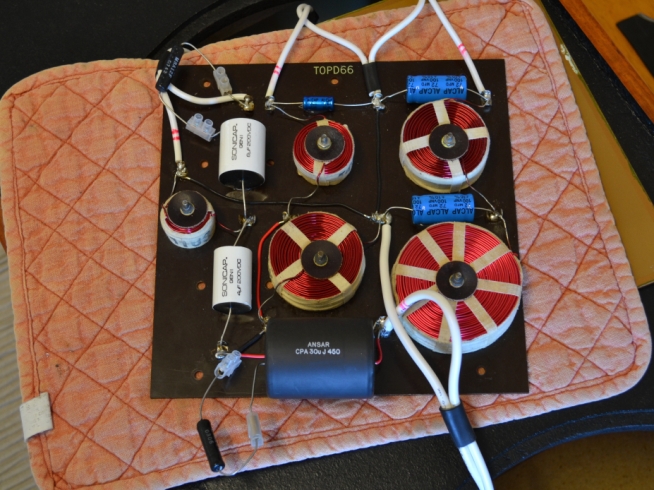

The recessed mid range has been getting on my nerves so I took out the
pair of 15uf Mundorf Low Loss Lytics and dropped in the large 30uf Ansar "Supersound" PP
cap with a 1.8 Ohm resistor to compensate for ESR. I changed the
tweeter attenuating resistor from 0.75 to 0.82 Ohm while I was at it. You can see
the terminal block elements I used to allow quick changes, I can swap
resistors with the x-over still mounted in the cabinet.
|
|
